Request For Our Latest Prices On Hastelloy Fasteners in Houston , USA!

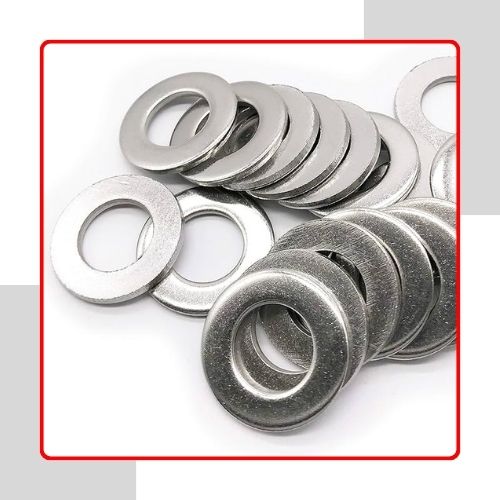

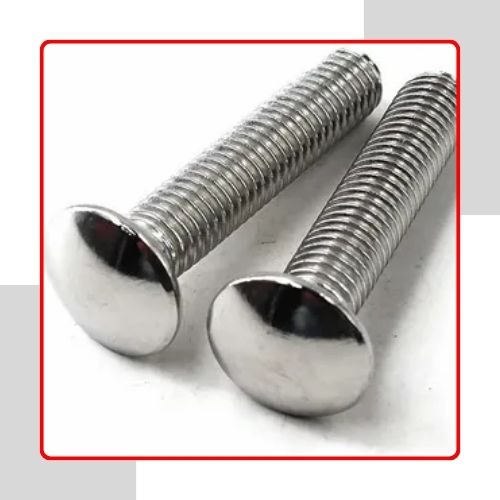

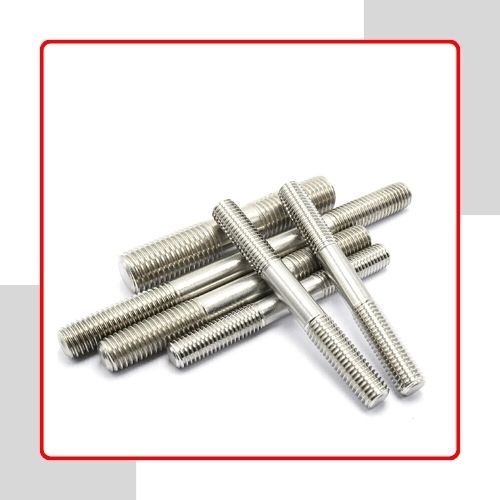

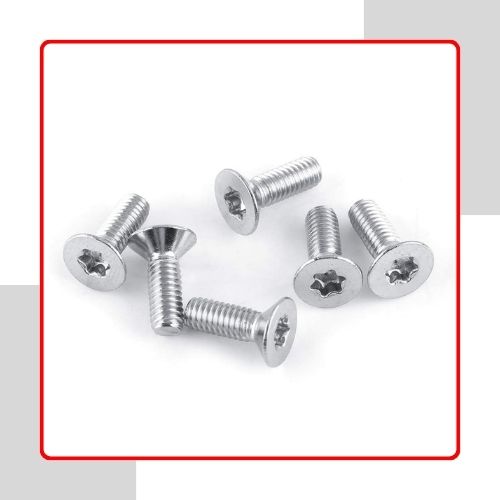

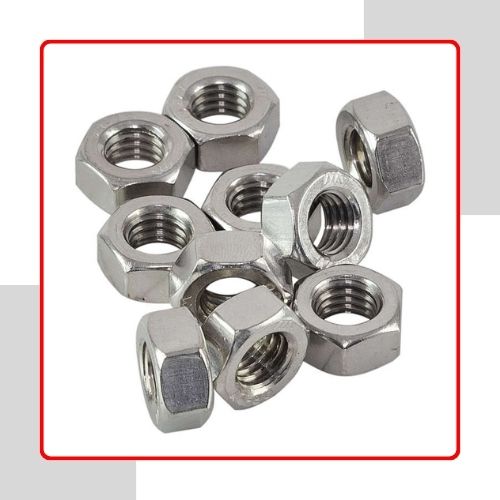

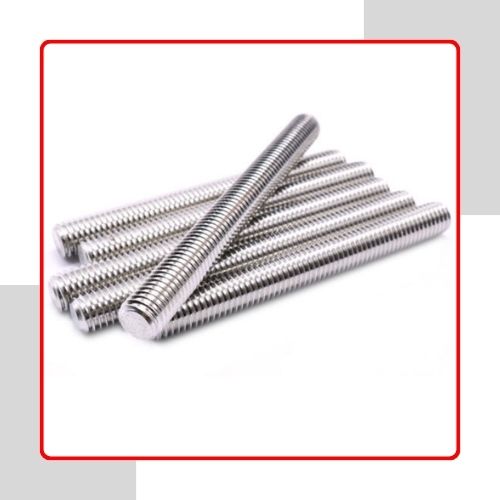

Brian Fasteners is a premium maker and distributor of Hastelloy Fasteners in Houston, USA, providing corrosion-free solutions for harsh industrial applications. Our fasteners—in the form of bolts, nuts, screws, washers, and threaded rods—are manufactured from top-grade Hastelloy grades such as C276 and C22. Engineered for unparalleled acid, chloride, and high-temperature oxidation resistance, these fasteners are employed in the world‘s most severe environments. Every fastener from Brian Fasteners is engineered to meet ASTM, ASME, and DIN specifications, providing resilient and accurate components found trustworthy in chemical, marine, and power generation applications.
Hastelloy Fasteners consist of high-performance alloys containing more than 57% nickel as the base, with added molybdenum, chromium, and iron. C276 and C22 grades provide superior corrosion resistance in reducing and oxidizing atmospheres. The tensile strength of these fasteners ranges around 100–115 ksi, yield strength around 45 ksi, and Rockwell hardness up to C30. They retain structural integrity over broad ranges of temperature and are resistant to localized attack in the form of pitting and crevice corrosion. Hastelloy fasteners excel in corrosive environments that reduce ordinary stainless steel at once.
| Specifications | ASTM B574 / ASME SB574 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
| Standard of High Nickel Alloy Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 Hex nuts |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Surface Coating | Ptfe Coated High Nickel Alloy Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing | High Nickel Alloy : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), High Nickel Alloy, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
| Grade | C | Mn | Si | Co | S | Ni | Cr | Fe | Mo | W | V | P |
| Hastelloy Fasteners | 0.010 max | 1.0 max | 0.08 max | 2.5 max | 0.03 max | Bal | 14.5 – 16.5 | 4 – 7 | 15 – 17 | 3 – 4.5 | 0.35 max | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy Fasteners | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
To satisfy our clients needs by providing high quality products at competitive price as per the schedule and to maintain long term relationship with our clients.
Hastelloy Fasteners find applications in chemical processing, pulp and paper, marine engineering, and desalination plants where they are resistant to acids, chlorine, and seawater. In drug manufacturing, they provide hygienic and corrosion-free assemblies. They‘re also used in power plants and nuclear reactors, protecting equipment exposed to high heat and radiation. They’re applied in scrubbers, chlorine gas systems, and incinerators because of their oxidation and stress corrosion resistance. Hastelloy fasteners can’t do without in high-temperature furnaces, aerospace parts, and biofuel production, where chemical exposure and intense heat require the strongest fastening solutions.
The Hastelloy fasteners that are manufactured at Brian Fasteners are packed with a lot of precaution. Every fastener is packed in individual protective material to avoid any damage, rusting or contamination during transportation. Our products include high quality cartons and packaging services that meet your exact needs and specifications. Clear labeling and packing also help in easy identification and handling of the products, which is our way of ensuring that we deliver the best quality products in the best state.
Brian Fasteners is a leading manufacturer and supplier of high-quality fasteners in Houston , USA, with over 8 years of experience serving global industries.
