Home > Stud Bolts > Stainless Steel 202 Stud Bolts
Request For Our Latest Prices On Stainless Steel 202 Stud Bolts in Houston , USA!

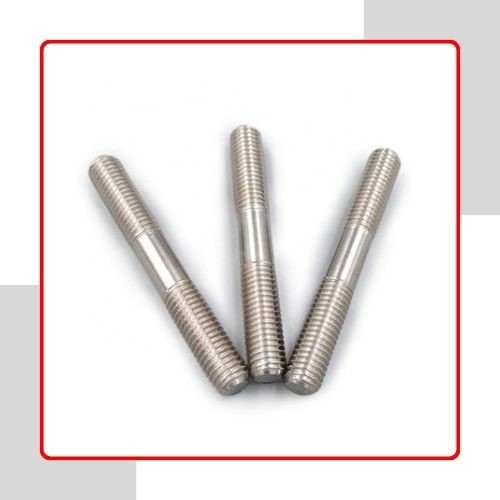

Brian Fasteners proudly produces and distributes Stainless Steel 202 Stud Bolts, developed for moderately corrosive applications where economical strength and performance are needed. Made in our Houston, USA plant, these stud bolts are composed of an austenitic chromium-nickel-manganese alloy and are suitable for general engineering, construction, and architectural applications. SS 202 has good mechanical strength and wear resistance, which makes these stud bolts appropriate for medium to light-duty industrial applications. Our 202 stud bolts are made to ASTM A193 specifications and precision-machined and tested for dimensional precision and mechanical performance.
Stainless Steel 202 has around 17–19% chromium, 4–6% nickel, 7.5–10% manganese, and minor nitrogen. It provides reasonable corrosion resistance along with good toughness. These stud bolts provide tensile strength of 90–100 ksi, yield strength of 35–45 ksi, and Rockwell hardness of B85–B95. SS 202 retains strength at room and moderately high temperatures. While less corrosion-resistant than 304, it is significantly cost-effective for internally and mildly corrosive conditions. It offers good weldability and machinability, which makes it applicable in general engineering purposes.
| Standard | As per IS , ASTM , BS etc. |
| Specification | ASTM A/ASME SA 193/194 |
| Size | M02 to M33 |
| Length | 3 mm to 200 mm |
| Element | Content (%) |
|---|---|
| Iron, Fe | 68 |
| Chromium, Cr | 17- 19 |
| Manganese, Mn | 7.50-10 |
| Nickel, Ni | 4-6 |
| Silicon, Si | ≤ 1 |
| Nitrogen, N | ≤ 0.25 |
| Carbon, C | ≤ 0.15 |
| Phosphorous, P | ≤ 0.060 |
| Sulfur, S | ≤ 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 515 MPa | 74694 psi |
| Yield strength | 275 MPa | 39900 psi |
| Elastic modulus | 207 GPa | 30000 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 40% | 40% |
To satisfy our clients needs by providing high quality products at competitive price as per the schedule and to maintain long term relationship with our clients.
Stainless Steel 202 Stud Bolts find general use in construction, interior buildings, and equipment frames where exposure to environmental corrosion is minimal. They‘re widely used in railings, architectural paneling, and light mechanical assemblies. These bolt types are also applied in automotive parts, furniture manufacturing, and farm equipment, providing both strength and economy. Under typical fabrication situations, they hold up well in dry, indoor, or mildly corrosive conditions. Although they are not suitable for marine or acid service, SS 202 stud bolts offer long-lasting fastening in low-maintenance, non-critical applications.
At Brian Fasteners, we specialize in environmentally friendly wooden boxes, pallets and packaging for our Stainless Steel 202 Stud Bolts. This meticulous loading process ensures that the screws are protected from dirt and dust, maintaining their quality during transport and storage. Our attention to detail assures that.
Brian Fasteners is a leading manufacturer and supplier of high-quality fasteners in Houston , USA, with over 8 years of experience serving global industries.
