Request For Our Latest Prices On SS 416 Fasteners in Houston , USA!
Houston-based Brian Fasteners is a reputable manufacturer and supplier of high-performance Stainless Steel 416 Fasteners. With a keen emphasis on quality and accuracy, the company offers fastening solutions that satisfy the stringent demands of different industries. Renowned for their excellent machinability and resistance, these fasteners are produced using sophisticated methods to guarantee consistency and reliability. Brian Fasteners caters to a wide customer base, providing customized products with reliable delivery and competitive pricing. Its dedication to customer satisfaction and technical excellence has made it a trusted business partner in the stainless steel fastener business in the United States and beyond.
Stainless Steel 416 Fasteners are basically composed of chromium (12–14%), supplemented by sulfur (up to 0.15%) to enhance machinability, and trace amounts of manganese, carbon, and silicon. These fasteners have a tensile strength of approximately 550 MPa and a yield strength of about 275 MPa. They can be heat-treated to harden them, which improves wear resistance and strength. Though having less corrosion resistance than austenitic grades, they are suitable for usage in mild environments. Their high strength-to-weight ratio, moderate corrosion resistance, and good machinability make them useful in applications where easy shaping and sound mechanical performance are required.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 416 | min. | 11.5 | ||||||||
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | 0.75 | |||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 416 | 480 | 275 | 16 | 95 | 201 |
| Specifications | ASTM A193 / ASME SA193 |
|---|---|
| In Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
| Length | 3 mm to 200 mm |
| Sizes | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36, etc. |
| Threads: | METRIC, BSW, BSF, UNC, UNF or as required |

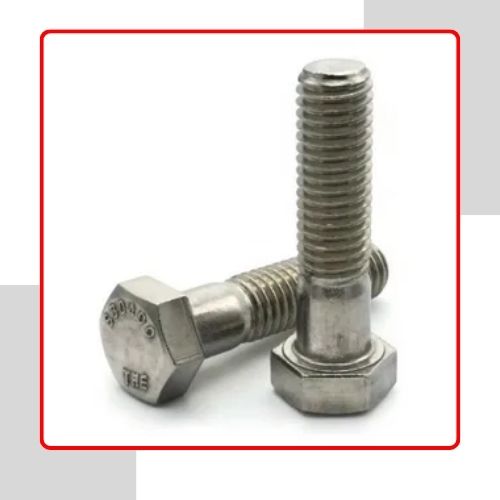

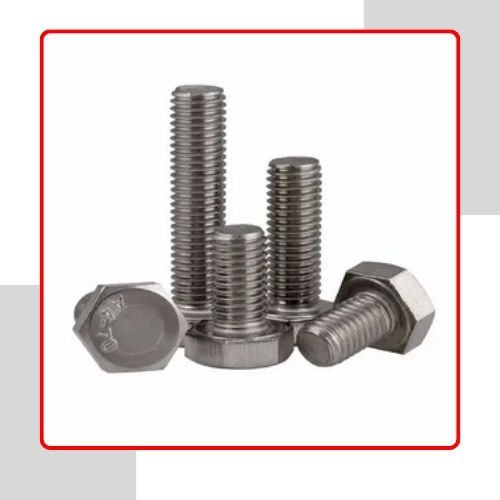

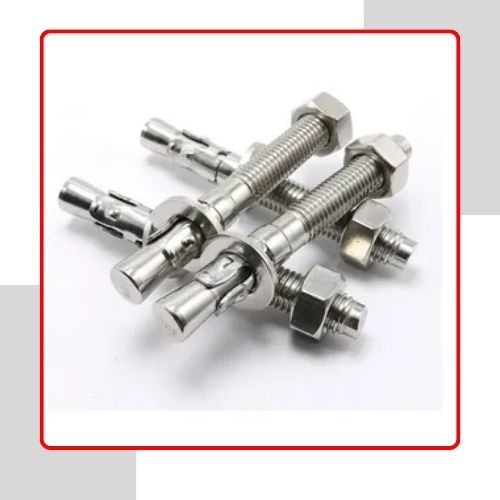

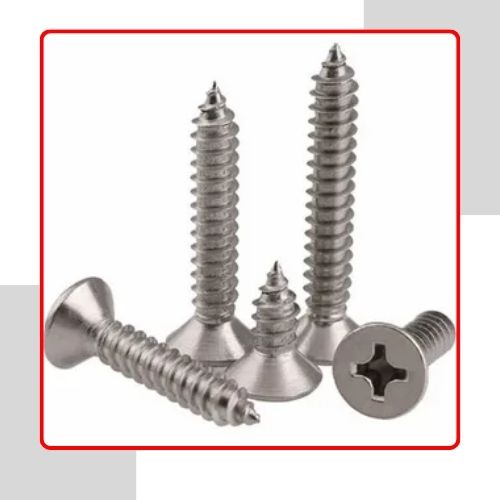

| Most Use Types of 416 Stainless Steel Screws | 416 Stainless Steel Socket Set Screws, Shoulder Screws, Hex Head Screws, Panel Screws, Concrete Screws, Socket Head Screws, Machine Screws, Threaded Screws, Blind Rivet, Anchor Screws. |
| Most Use Types of 416 Stainless Steel Nuts | 416 Stainless Steel Coupling Nuts, Square Nuts, Acorn Nuts, Hex Head Nuts, Dome Nuts, Lock Nuts, Panel Nuts, Wing Nuts, T Nuts, Eye Nut. |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
To satisfy our clients needs by providing high quality products at competitive price as per the schedule and to maintain long term relationship with our clients.
Stainless Steel 416 Fasteners are applied in a very broad spectrum of industries owing to their tensile strength, durability, and simplicity in machining. They are typically seen in the automotive industry for engine parts, aerospace for non-critical structural components, and pump, valve, and shaft manufacturing. Stainless Steel 416 Fasteners are also applied to industrial equipment, appliances, and gear assemblies where moderate corrosion resistance along with high wear strength is needed. Their heat-treating capabilities make them suited for high-stress applications, and their machinability makes them a good choice for precision uses that require constant assembling and maintenance.
At Brian Fasteners, we adhere to exacting standards for our Stainless Steel 416 fasteners, which is reflected in our careful documentation. Our commitment includes comprehensive documentation including commercial invoices, packaging specifications, fumigation certificates, heat treatment records and detailed quality controls according to EN 10204/3.1b standards. We provide PMI test certificates and 100% complete radiographic test reports to ensure the highest quality and reliability. Additionally, third-party verification certifications attest to our commitment to meeting and exceeding industry standards. Our stainless steel 416 fasteners are carefully installed to prevent damage in transit, ensuring they arrive in optimal condition, ready to meet exacting customer expectations.
